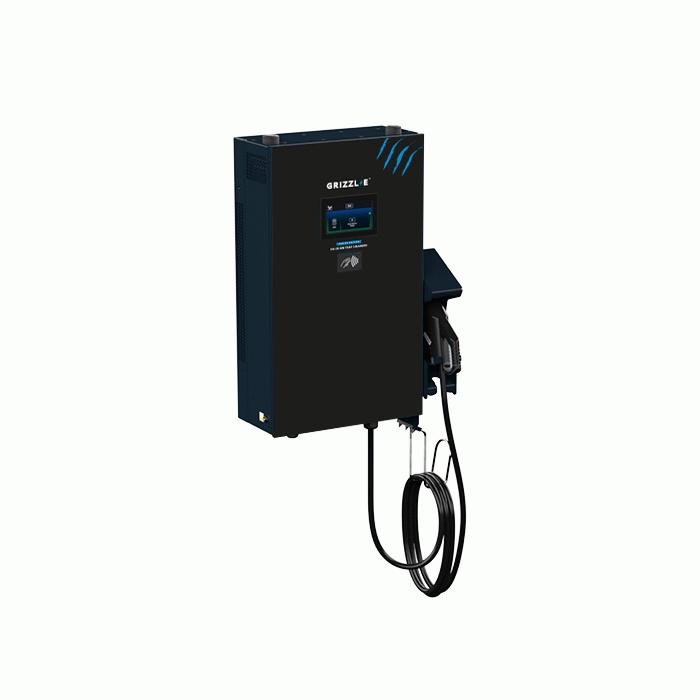

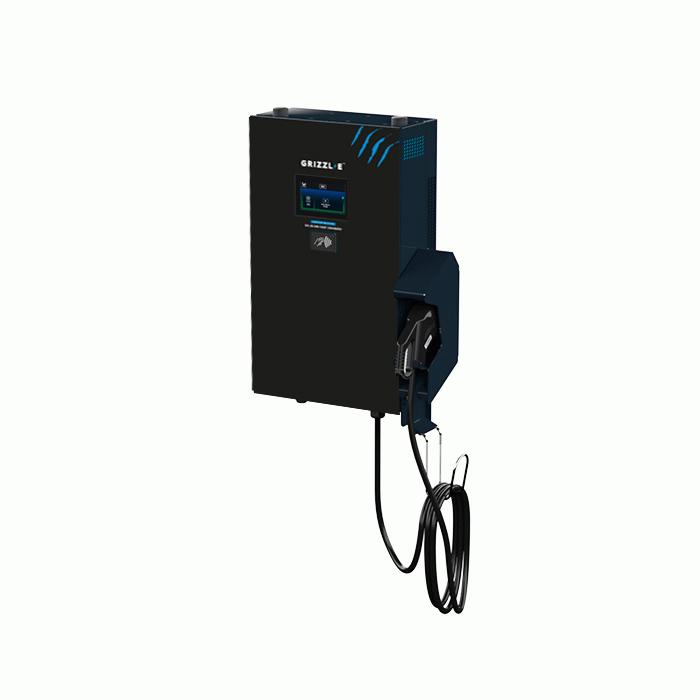

With its compact design, the Grizzl-E Kodiak Edition MONO CCS1 can be installed in less than two hours, either on a wall or on a pedestal (optional). Its 25 kW output power will charge any electric vehicle typically in one hour. Based on a unique design without air filter, the maintenance needs are greatly reduced. It is an ideal solution for providing fast charging points at car dealerships, service centers, or for any utility vehicle or enterprise fleet. Wireless connection via OCPP1.6 makes possible over-the-air upgrades, supervision and other remote operations.
Voltage : 480 VAC 50/60Hz 3 Phase (3P + N + Ground)
Nominal input current: 37 A
Voltage : 208V /240 VAC 50/60Hz 3 Phase (3P + Ground)
Nominal input current: 65 A
Voltage : 220V / 240 VAC 50/60Hz 1 or 2 Phase (2P + Ground)
Nominal input current: 112 A
Power factor: > 0,99
Voltage : 150 VDC to 530 VDC
Current: 1,5 to 65 A
Max output power : 24 kW
Operating temperature: -13 F to +122 F (derating above +95 F)
